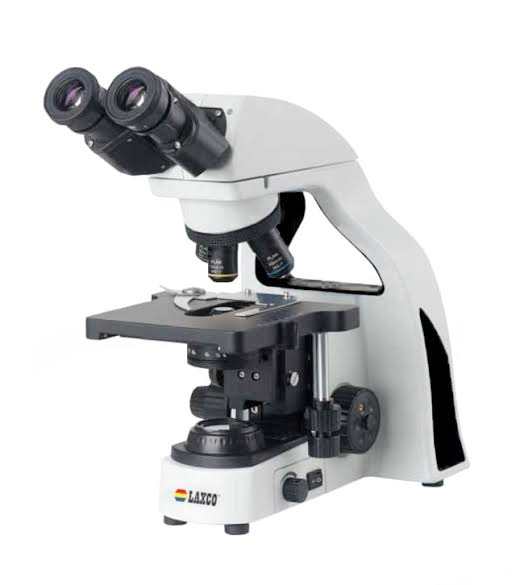

Bio-Microscope

Product Specification

Optical system: Infinity-corrected optics for high-resolution imaging

Magnification:

• Objectives: 4x, 10x, 40x (oil immersion), 100x (oil immersion)
• Eyepieces: 10x wide-field lenses
• Total magnification: 40x to 1000x

Illumination:

• LED light source with adjustable brightness
• Kohler illumination for uniform lighting

Stage:

• Mechanical stage with X-Y movement (75mm x 50mm range)
• Slide holder compatible with standard microscope slides
• Focus system: Coaxial coarse and fine focusing knobs
• Condenser: Abbe condenser with iris diaphragm (NA 1.25)
• Body: Durable metal frame with ergonomic design
• Eyepieces: Wide-field with anti-fungal coating
• Filters: Built-in color and contrast filters (blue, green, yellow)
• Power supply: Rechargeable battery or AC powered LED
• Dimensions: Approx. 35 cm (L) x 20 cm (W) x 40 cm (H)
• Weight: Around 5 kg

Additional features:

• Compatible with digital camera adapters
• Interchangeable objective lenses
• Dust cover included

Product Details:

The Bio-Microscope is a state-of-the-art precision optical instrument meticulously engineered to meet the demanding needs of biological and medical research, academic education, and clinical diagnostics. Designed to reveal the intricate and minute structures of biological specimens, it offers scientists, students, and healthcare professionals exceptional clarity, high resolution, and accurate imaging capabilities.

Equipped with advanced optical components and a robust infinity-corrected optical system, the Bio-Microscope ensures sharp, distortion-free visuals across a broad range of magnifications. Its wide range of interchangeable objective lenses, from low to high power including oil immersion options, provides versatile magnification levels from 40x to 1000x, allowing detailed observation of cells, tissues, microorganisms, and other microscopic entities.

This microscope incorporates ergonomic features such as smooth-focus mechanisms, a mechanical stage with precise X-Y slide movement, and adjustable LED illumination with Kohler lighting, all designed to maximize user comfort and optimize sample examination. The illumination system delivers consistent, bright, and uniform lighting essential for accurate visualization and analysis.

Built with a durable metal frame, anti-fungal coated lenses, and easy-to-clean surfaces, the Bio-Microscope is engineered to withstand the rigors of daily laboratory use while maintaining long-term reliability. Additionally, it supports digital imaging through compatible camera adapters, enabling documentation and sharing of observations for research, teaching, and clinical review.

The Bio-Microscope is an indispensable tool for a wide variety of settings, including university laboratories, research institutions, medical facilities, and teaching environments. It enhances scientific discovery, educational outcomes, and clinical accuracy by providing reliable, high-quality microscopy tailored to diverse biological imaging requirements.
