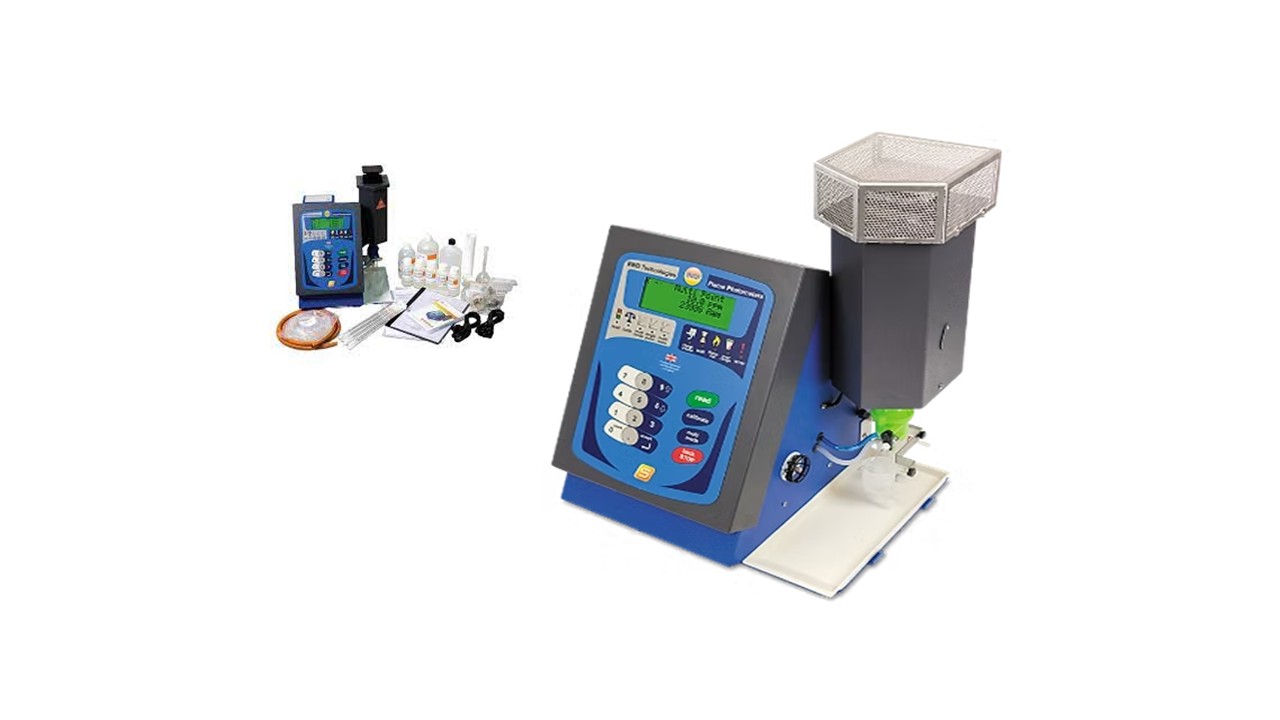

Flame Photometer

Product Specifications:

Flame photometer with Na, K, Li, Ca, Cs Element Detections:

• Optical Range:
• Multi Point Calibration:

Na 0.1 – 1000ppm

K 0.05 – 1000ppm

Li 0.05 – 1000ppm

Ca 1.0 – 1000ppm

Ba 5.0 – 3000ppm

Cs 0.5 – 1000ppm

• Ions measured:

Customizable measurement of Na, K, Li, Ca, Ba and Cs

• Sample rate: 2 – 3.5ml/min
• Tubing materials: Silicone and Tygon® or as specified
• Specificity: Na/K/Li = <1% to each other when equal in concentration at <100ppm

Required desk space for Instrument: 50cm (H) x 45cm (W) x45cm (D)

For Safety reasons the Flame photometer requires 1m of unobstructed space above to allow dissipation of heat from the chimney.

• Instrument size:

SFP Flame Photometer: 51cm (H) x 39cm (W) x 35cm (D), (20in x 15in x 14in)

Shipping: 65cm (H) x 49cm (W) x 43cm (D), (25in x 19in x 17in)

Weight: SFP Flame Photometer: 14kg

Shipping: 25kg

Power requirements: 250V AC at 50

Readout: LCD, four line, alpha numeric, back lit.

Product Details:

The BWB flame photometer is a game-changer in what is possible with a low temperature flame – give us a call if you’re looking for a something to perform specifically for your needs.

The BWB flame photometer is a game-changer in what is possible with a low temperature flame and our product development program has, since day one, been driven by our customer’s demands. We have strong mutually beneficial partnerships within many commercial and academic organizations that faced specific challenges that were addressed by a BWB Special flame photometer.

Currently we are measuring Na, K, Li, Ca, Cs and Ba and combinations of these detectors allow users to engage with BWB engineers to evolve an ideal instrument that caters to their specific needs.

Standard Features:

∆ Built-in air compressor.

∆ Compatible with BWB AFHS.

∆ User selectable decimal places.

∆ Solutions and labware included.

∆ Specially configured to suit your needs.

∆ Display prompts step by step operation.

∆ Intuitive user interface for true ease of use.

∆ IRS (Internal Reference Standard) available.

∆ Operator independent determination of results.

∆ Correction of Ca for the interference from high levels of Na.

∆ 4 user selectable units of measure with a fifth optional unit of measure.

∆ Simultaneous detection and display of any combination of all 5 atoms of interest.

∆ Integrated printer uses readily available paper from any high street office supply company.

∆ Our nontraditional 5th “Unit of Measure” allows the true innovation of units to display and link.

“If you need more information regarding different models, different applications, or working capacity, feel free to contact with our technical team.”
