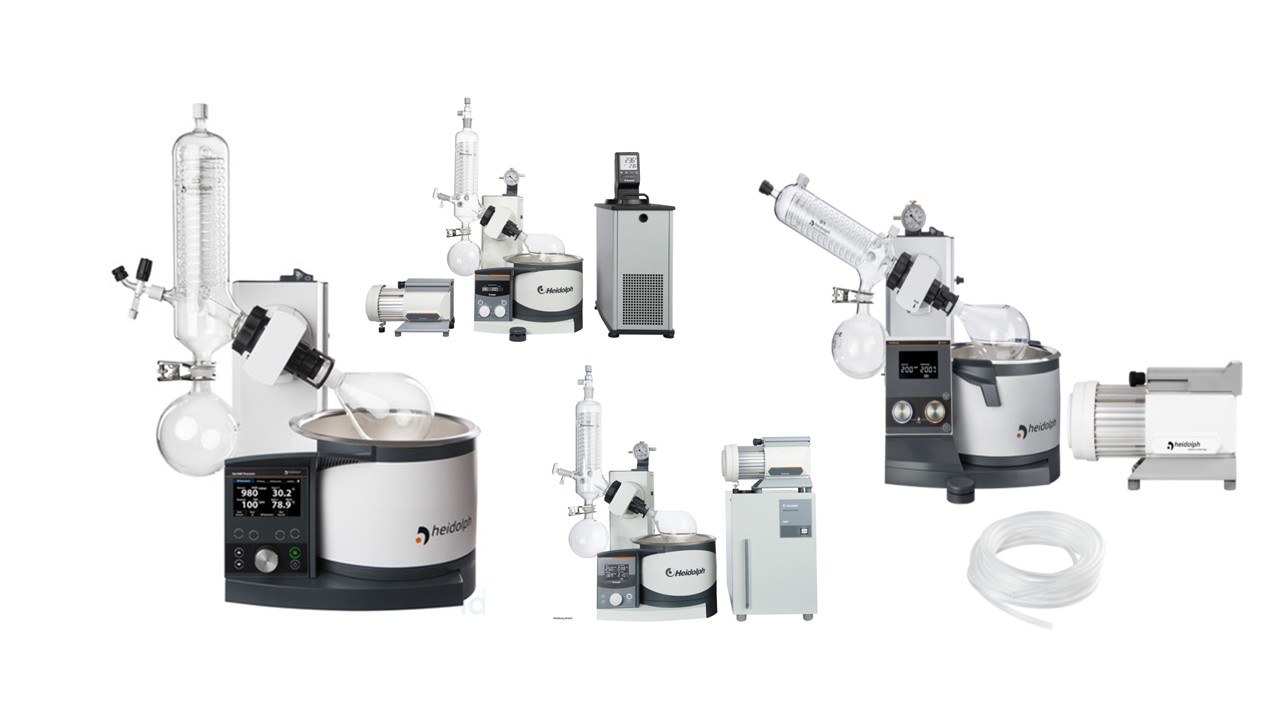

Rotary Evaporator

Product Specification

Hei-VAP Ultimate Control Rotary  evaporator with coated G3 XL vertical glassware:

• Drive: EC motor
• Control: electronic
• Speed range: 10 – 280 rpm
• Rated voltage: 230 V (50/60 Hz)
• Stroke flask lift: 155 mm
• Weight: approx. 15 kg, without glassware
• Overheat protection: Threshold value 250 °C
• Heating bath: Inner Ø: 253 mm, outer Ø: 291 mm, Volume 6L
• Maximum cooling surface: 0.22 m2 (depending on glass set)
• Operating temperature: 5 °C – 31 °C at up to 80 % rel. humidity
• Temperature range heating bath: 20 – 100 C° H2O / 20 – 210 C° oil

Product Details:

A Rotary Evaporator is a laboratory instrument used to gently and efficiently remove solvents from samples by evaporation under reduced pressure (vacuum). It is mainly used in chemistry, pharmaceuticals, food, and research labs for solvent recovery, concentration, and purification.

Certification:

√ Define and save own evaporation processes.
√ USB and Micro SD plus LAN / RS 232 interfaces.
√ Direct access to two favorites on the start screen.
√ Automatically evaporate with the Dynamic AUTO accurate Program.
√ Motor lift model with transparent plastic coated G3 XL vertical glassware.
√ Setting of values either via the touch display or the separate quick access knobs.
√ Convenient and customizable: from foam avoidance to highly efficient evaporation.
√ For precise monitoring, the pictogram on the display also symbolizes active functions.
√ 7″ touch display for controlling the entire system including the vacuum and the cooling temperature.
√ Separate knobs for quick access: the right one for direct vacuum control, the left one for the rotation.
√ Expandable solvent library. You can also transfer your own favorites to other devices using a USB stick.

Accessories:

√ Control-Box

√ Vacuum Valve

√ Glassware sets

√ Vacuum Pumps

√ Flasks / Spiders

√ Evaporating cylinder

√ Vapor tube with filter

√ Spare clamping sleeve

√ Chillers & Thermostats

√ Vacuum seal PTFE / FFKM

√ Ventilation and Replenishment Valve

“If you need more information regarding different model, different applications, or working capacity, feel free   to contact with our technical team.”
